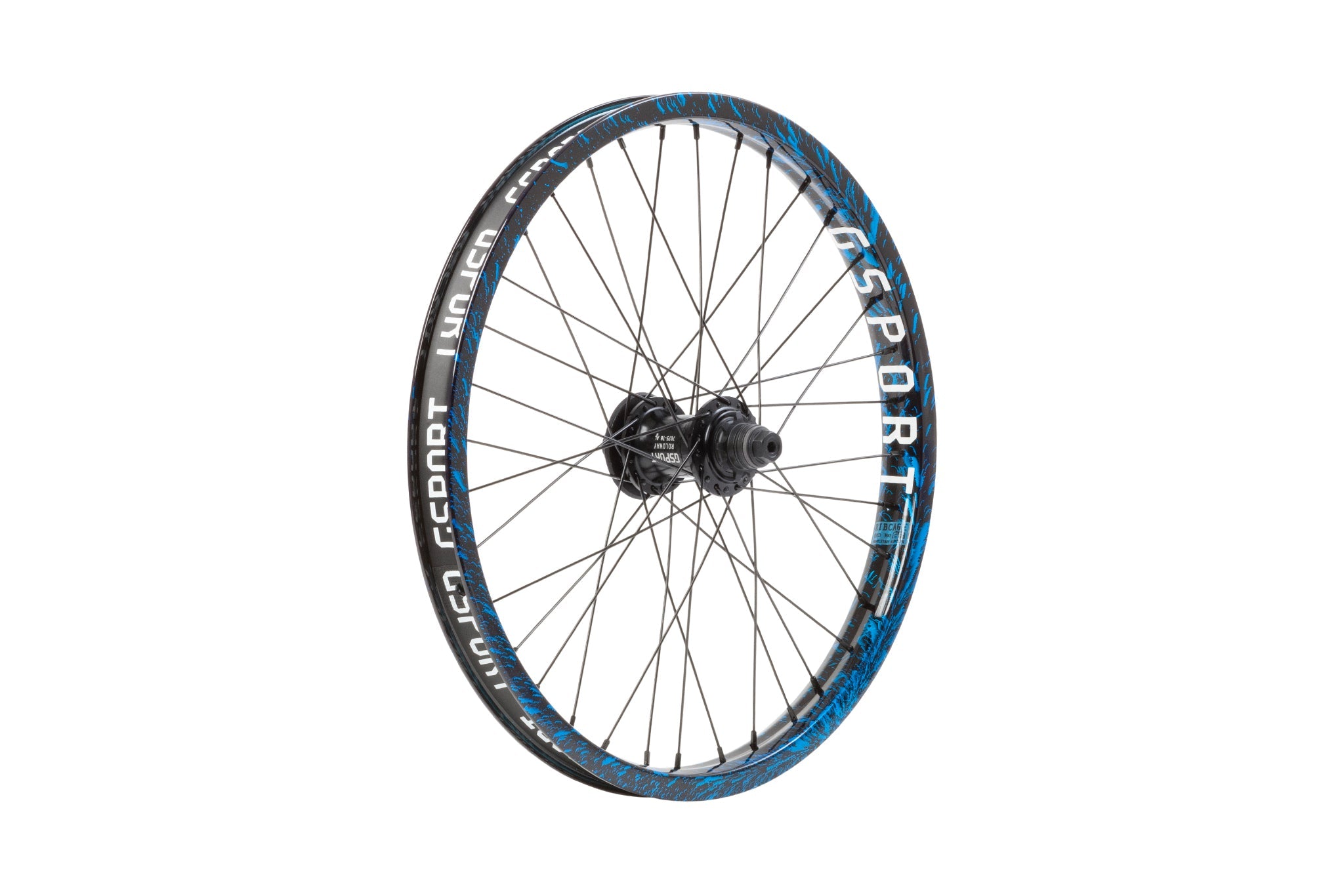

GSport Elite CSST Rear WheelBlue Blood
GSport Elite CSST Rear WheelBlue Blood
If you take the GSport Ribcage Rim and lace it to GSport Roloway Cassette Hub, you’ll end up with one of the strongest BMX cassette wheels you can get.
Matches GSport Elite v2 Front Wheel.
Comes stock with GSport High Pressure Rim Strips.
Roloway Cassette Hub
This RHD/LHD compatible hub features a modern slim shape along with all the durability you've come to expect from a GSport hub.
Features
- 7075-T6 aluminum hub shell
- Super durable and smooth 16003 sealed cartridge hub shell bearings
- 14mm 4130 chromoly axle bolts w/17mm 4130 chromoly female axle
- 9T driver with 3-Pawl independent spring design and precision caged needle bearings
- RHD/LHD switchable
- Replaceable plastic hub guard included
Roloway Cassette Hub Specifications
Spoke Configuration: 36 holeHub Shell Material: 7075-T6 aluminum
Hub Shell Bearings: 16003 sealed cartridge ball bearing
Axle: 17mm 4130 chromoly female axle
Axle Bolts: 14mm 4130 chromoly
Guard Option: Plastic hub guards included
Drive Side Flange Diameter: 50mm
Non-Dive Side Flange Diameter: 50mm
Drive Side Flange to Center: 29mm
Non-Drive Side Diameter: 29mm
Weight: 480g with guard / 436g without guard
Ribcage Rim
The Ribcage is GSport's strongest rim. It features thick outer walls, cross-over-spoke lacing, and patented “Rib” design.
Ribcage Rim Specifications
Sizes: 20" onlyDrillings: 36 and 48
Weight: 500g / 17.6oz
Width: 36mm
Height: 18mm
ERD: 389mm
U.S. Patent 7,427,112
