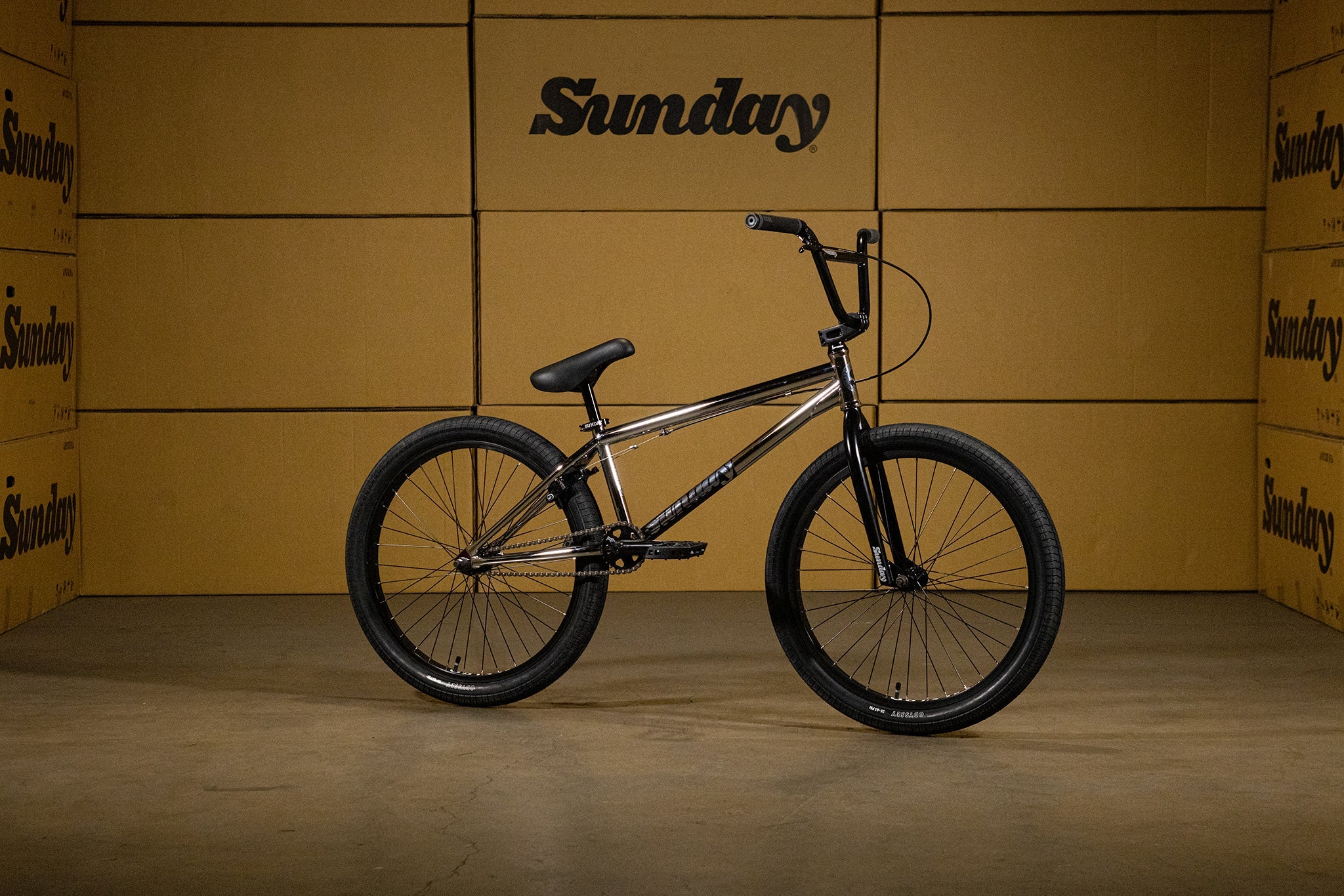

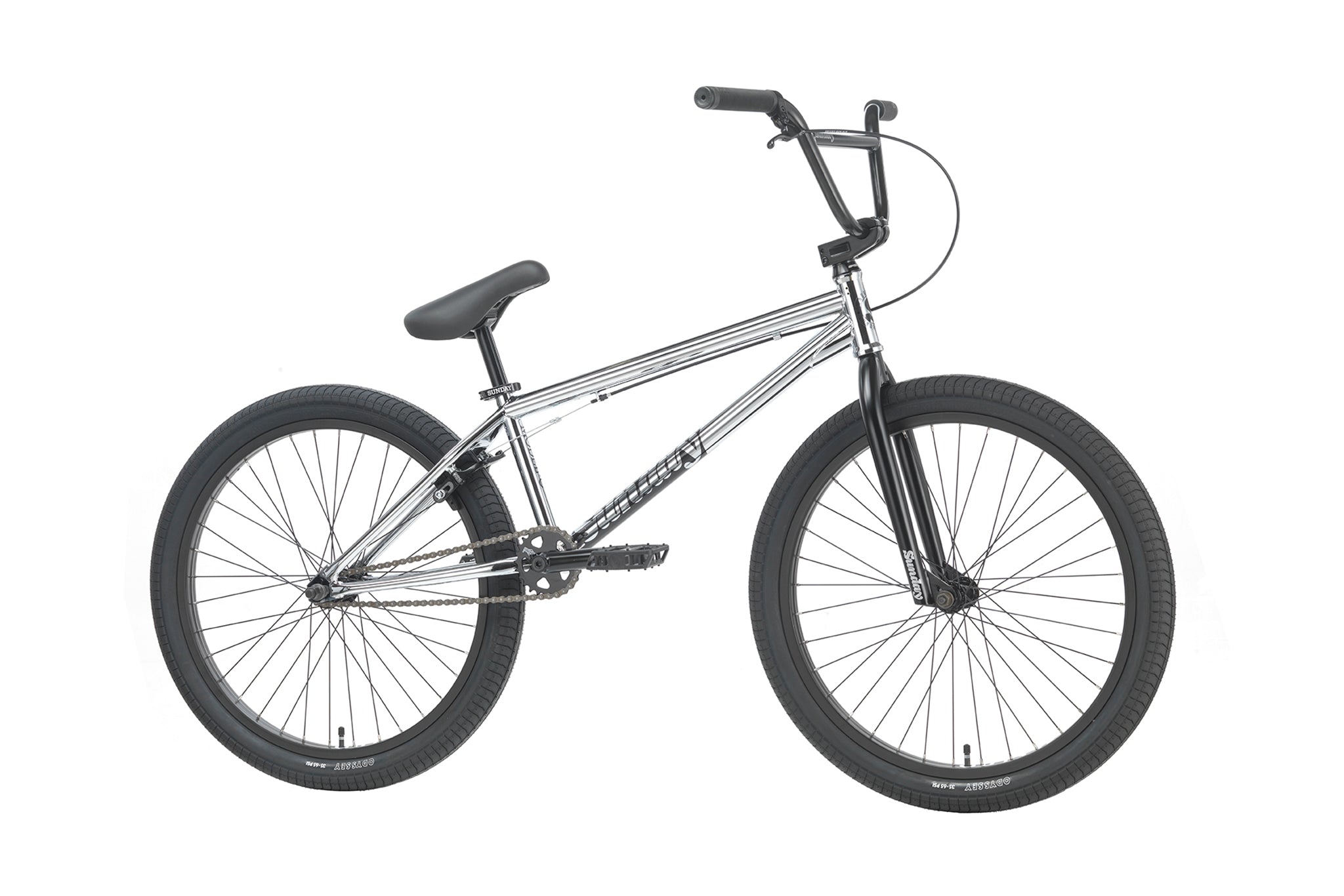

Sunday Model C 24"Chrome with 22" tt
The Model C created the modern standard in 24” BMX.
With its proven 20” inspired geometry and 100% chromoly frame, this bike can be ridden with a greater sense of control at full speed. Bigger riders will notice its advantages right away. Featuring sealed hubs front and back, 24” Odyssey Path Pro tires, Stage 1 rims, Twisted Pro pedals, quick release seat clamp, Springfield brakes/levers and more at a great price. Also, you can’t go wrong with chrome.
When it comes to 24”, the Model C changed the game.
Key Features
- 24" Pro-Style Geometry
- 100% Chromoly Frame
- Odyssey Broc Raiford Grips
- Odyssey Twisted PC Pro Pedals
- Sunday Badge Pivotal Seat
- Sunday Quick-Release Seat Post Clamp
- Odyssey Springfield Brakes
- Sealed Front & Rear Hubs
- Odyssey Stage 1 Rims

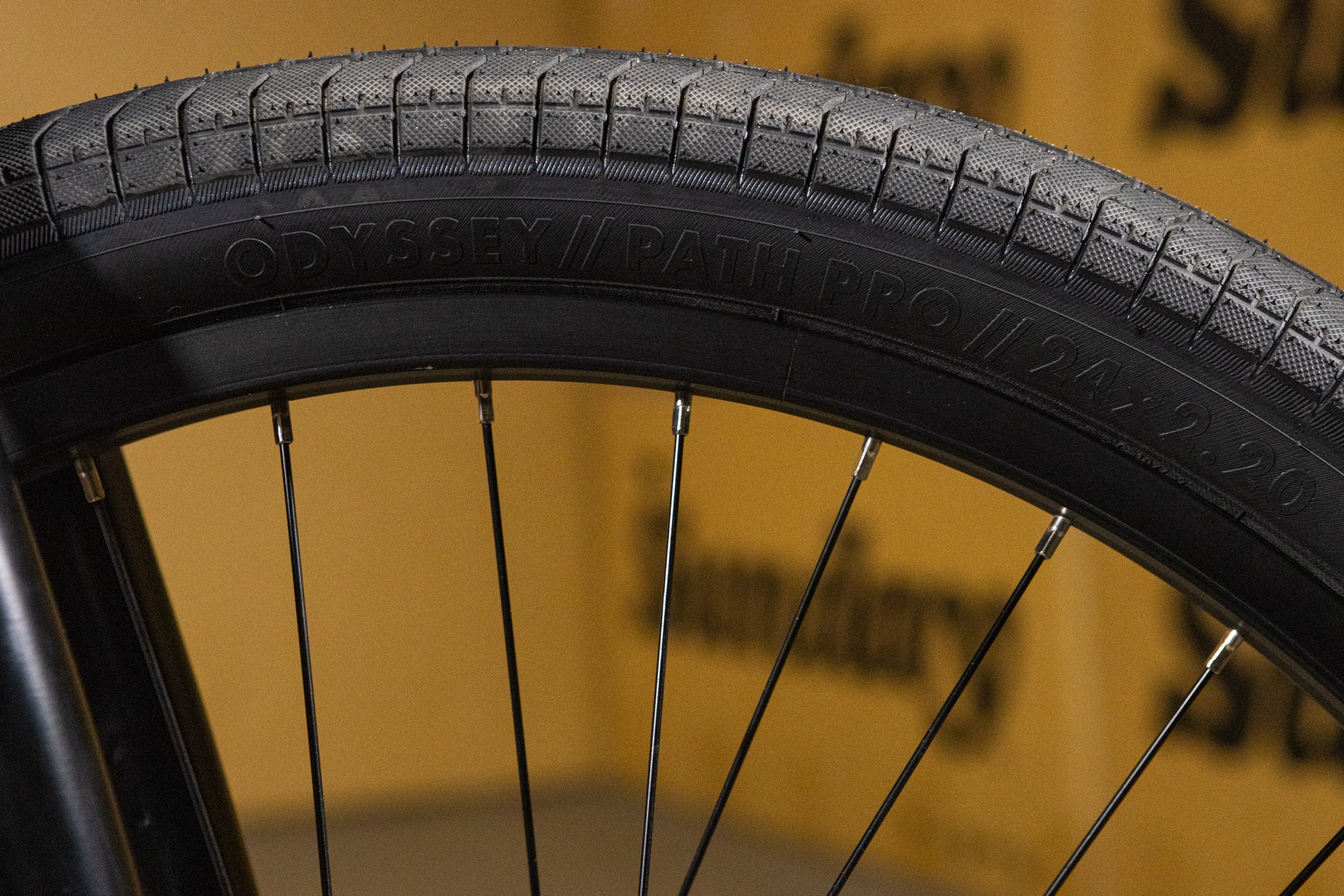

- Odyssey Path Pro 24” OEM Tires
Specifications

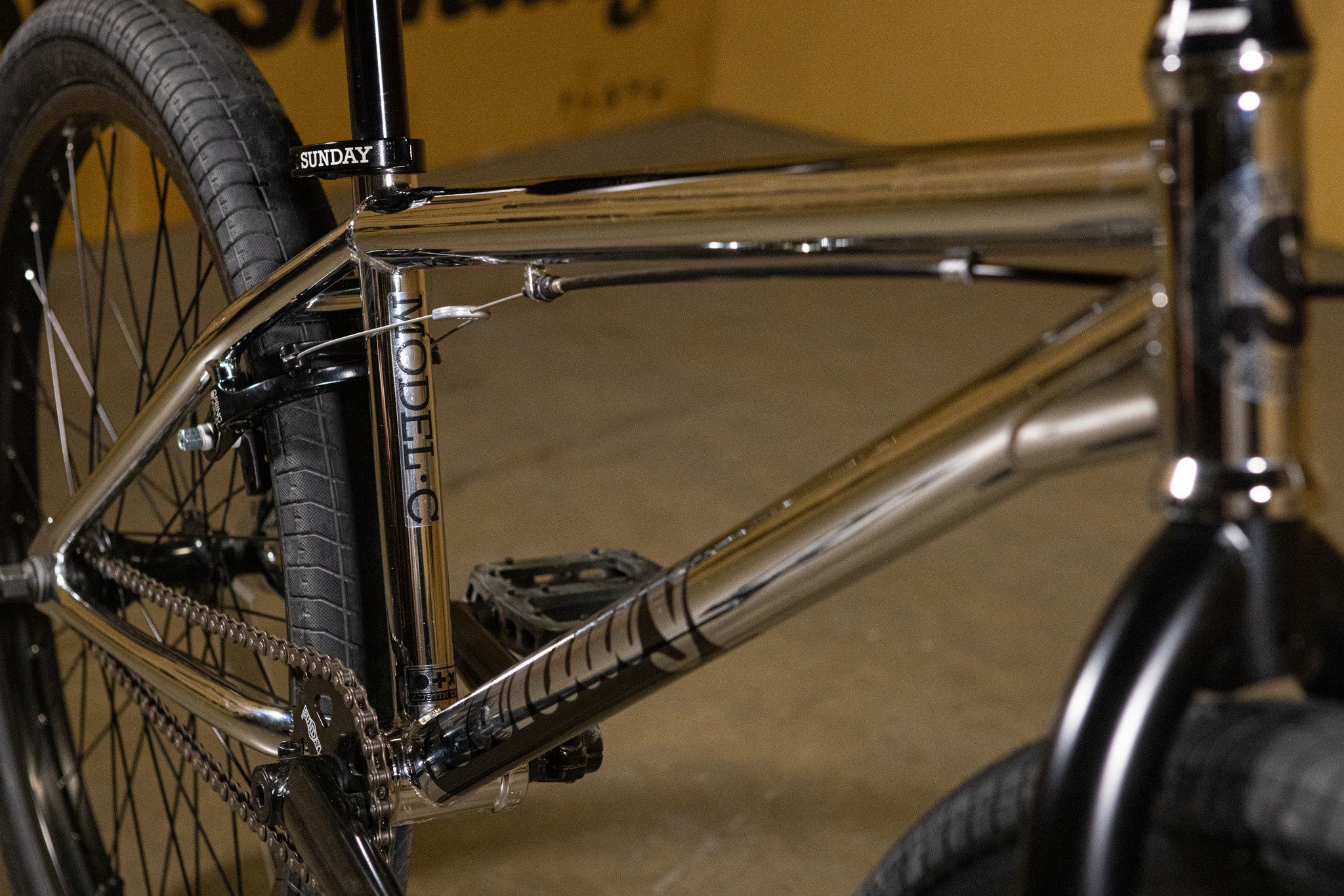

Frame: Sunday Model-C, 24" frame, 100% Chromoly w/ Integrated HT, Cr-Mo DT/CS
Fork: Sunday Model-C, 24" fork w/ 2-piece chromoly steerer tube and welded pre-load

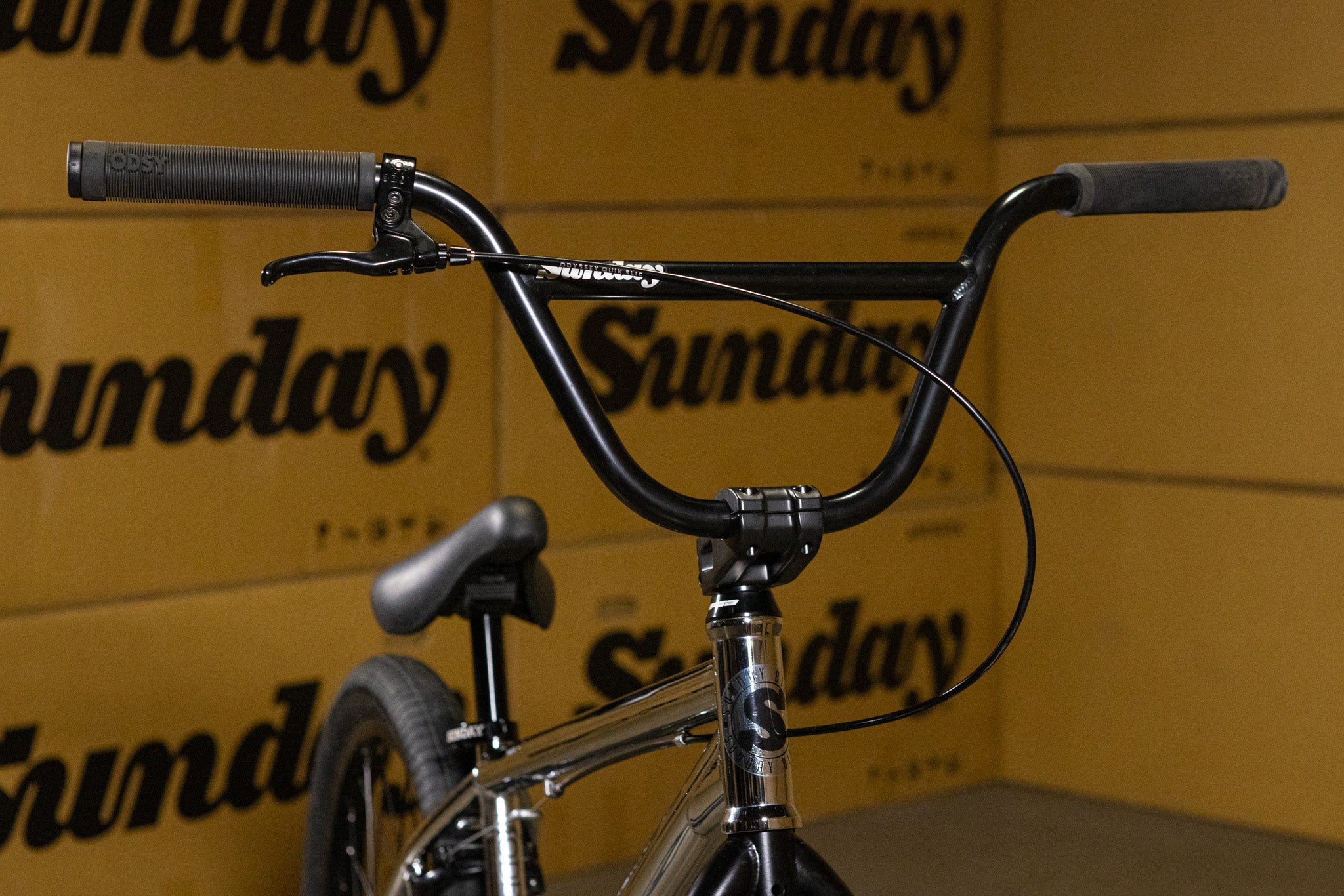

Handlebar: Sunday 24umph XL OEM, 2-piece

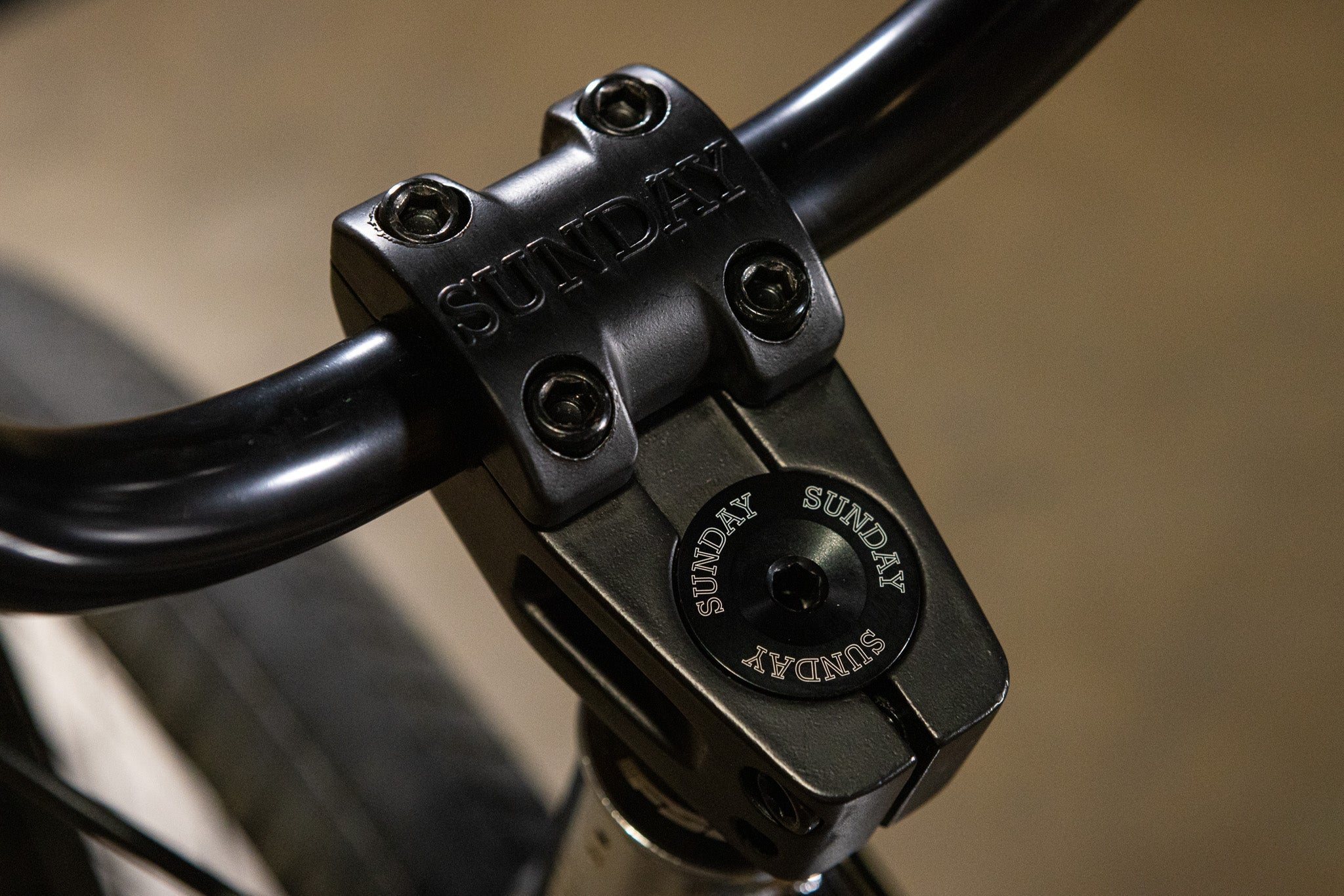

Stem: Sunday Freeze top load, 48mm
Headset: FSA integrated conical, 1-1/8"
Alloy Cap: Sunday M16, aluminum
Brake Lever: Odyssey Springfield

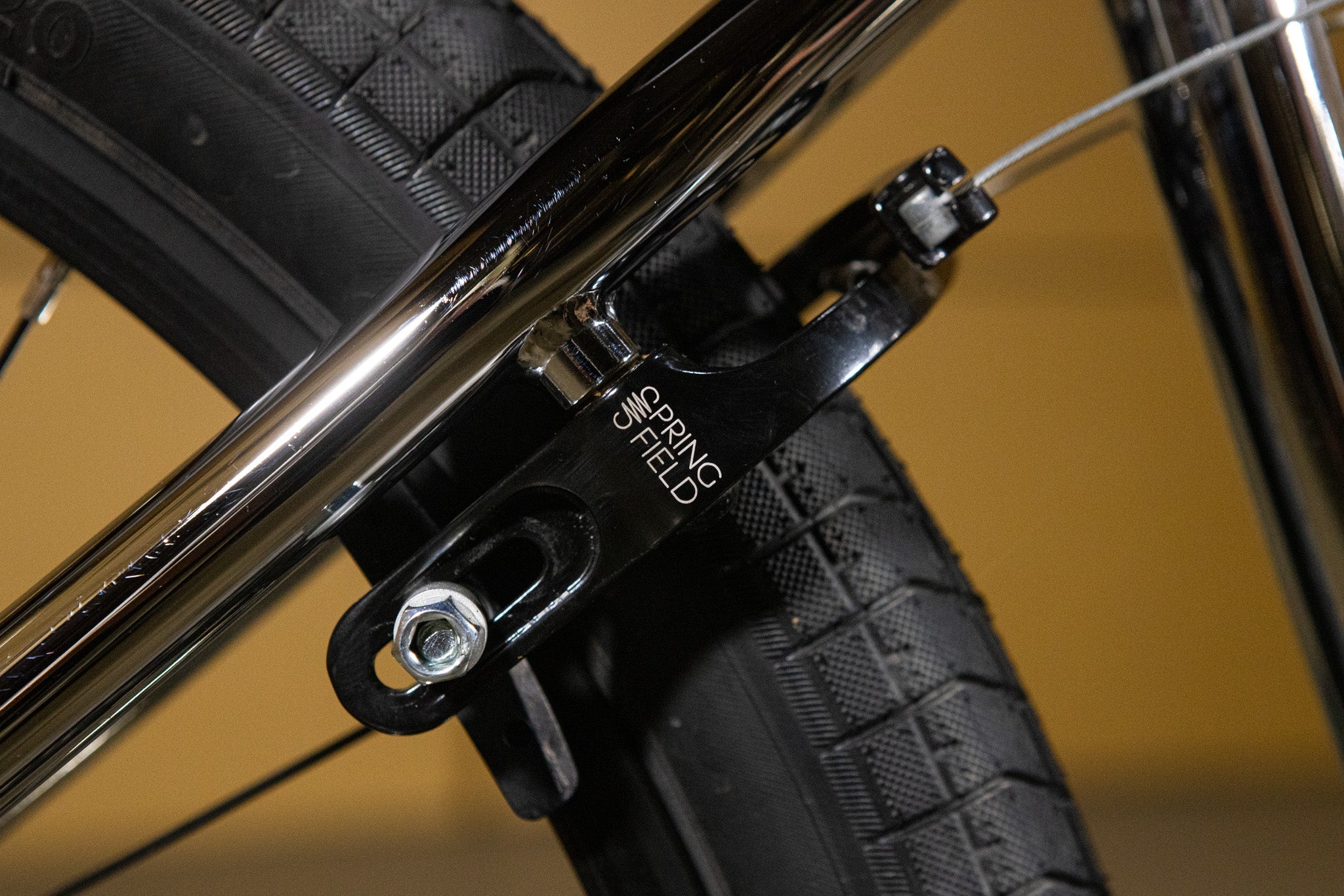

Brakes: Odyssey Springfield U-brake

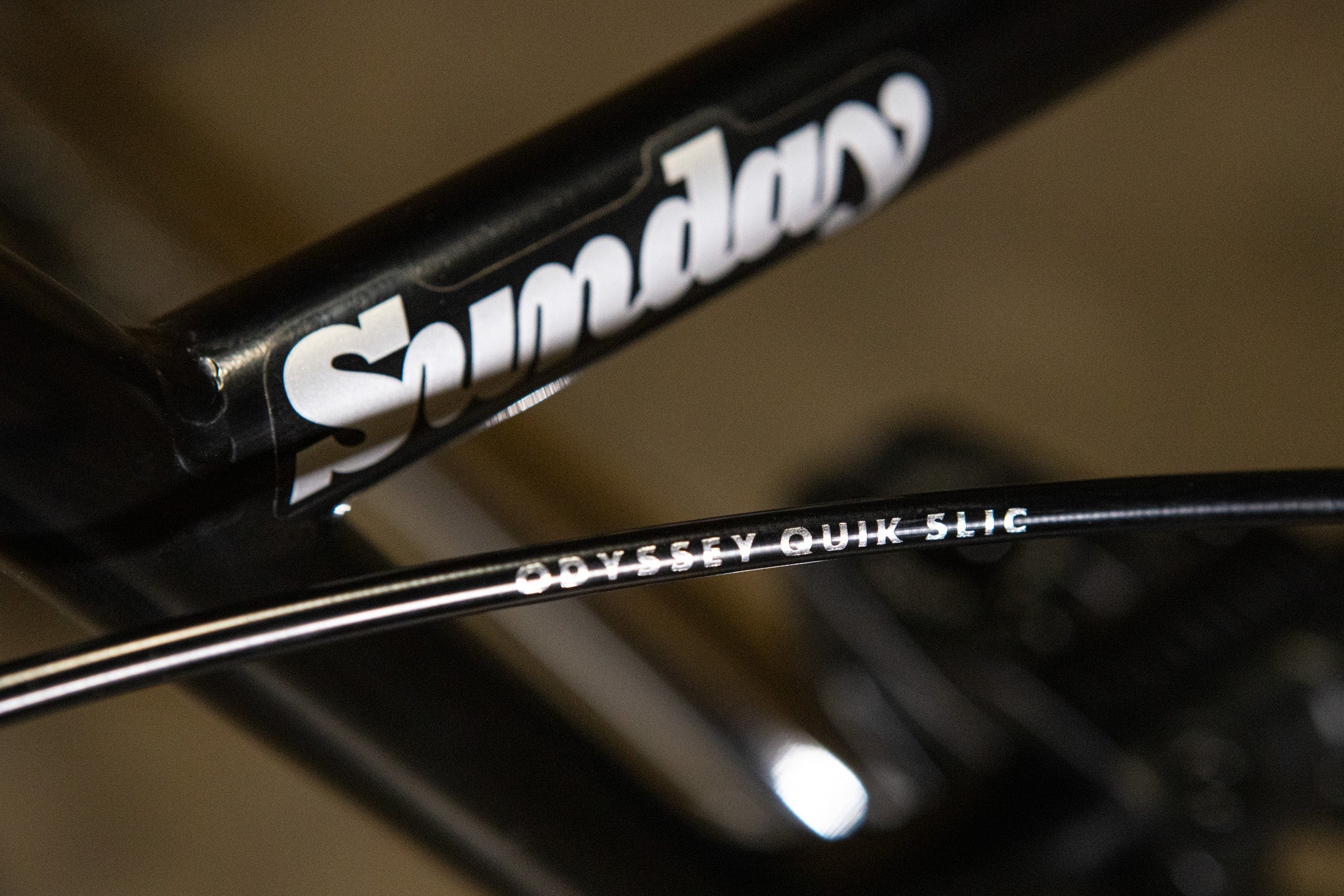

Brake Cable: Odyssey Quik Slic

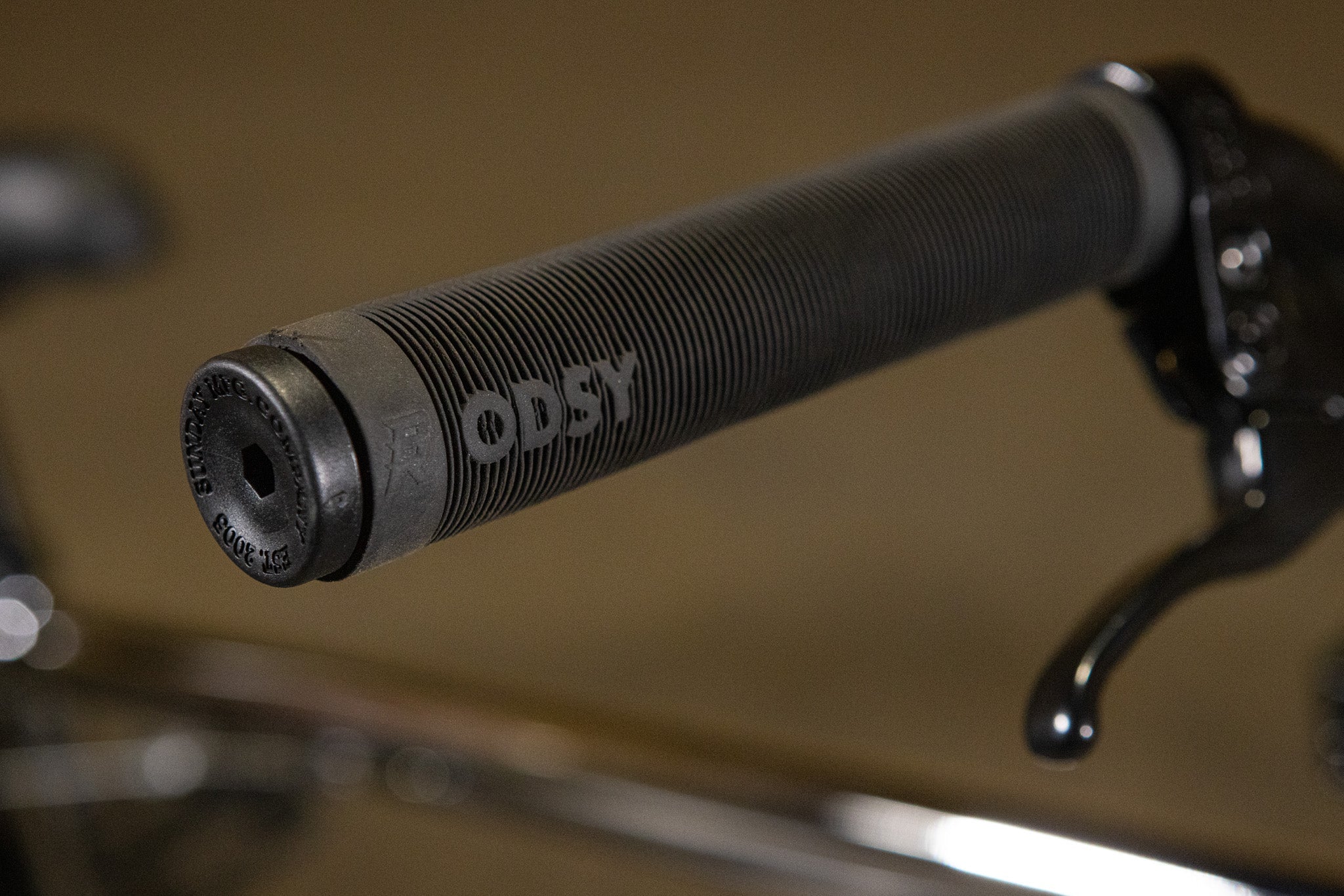

Grips: Odyssey Broc Raiford

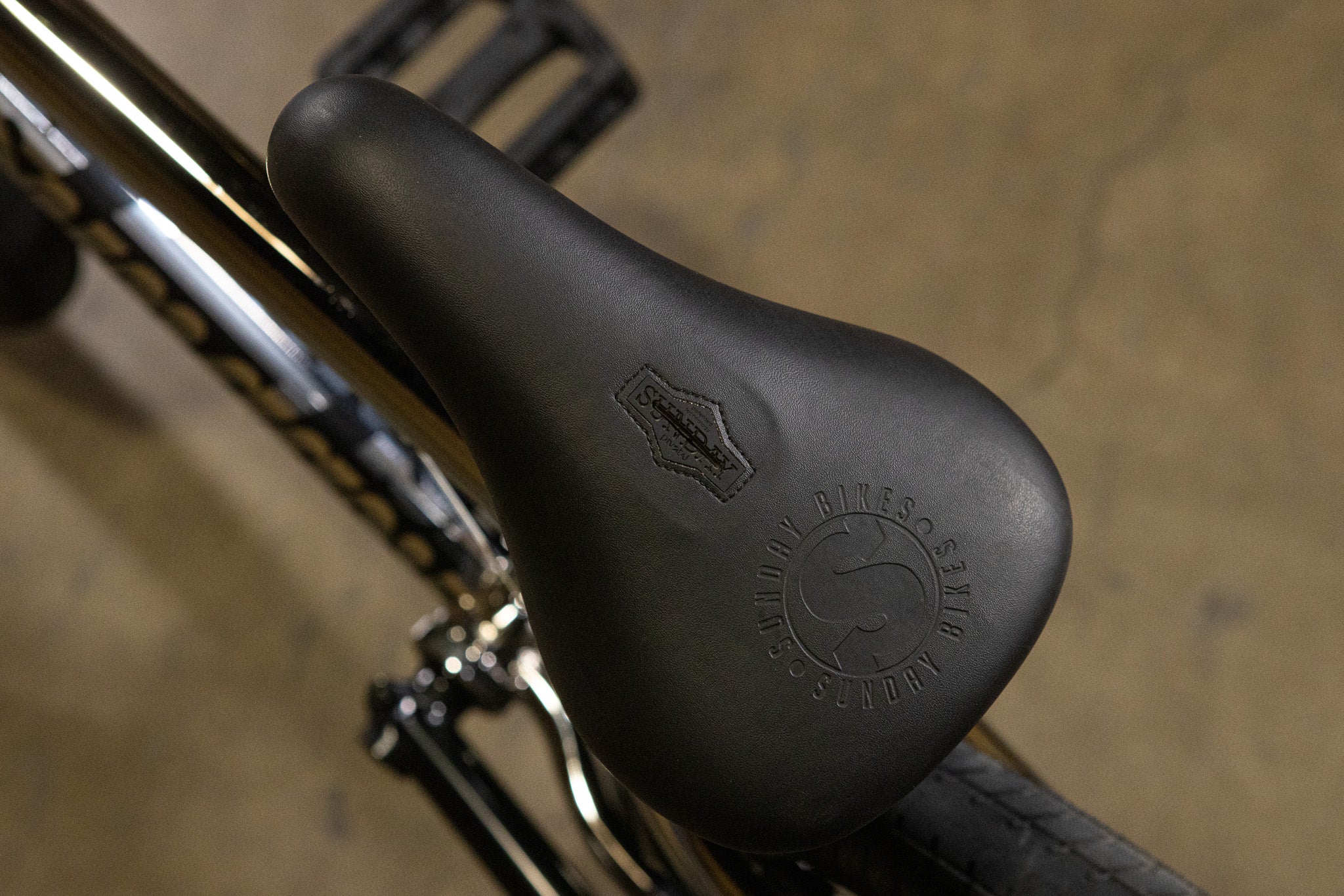

Seat: Sunday Badge, Pivotal
Seat post: Sunday Pivotal, 300mm
Seat Clamp: Sunday, Quick Release

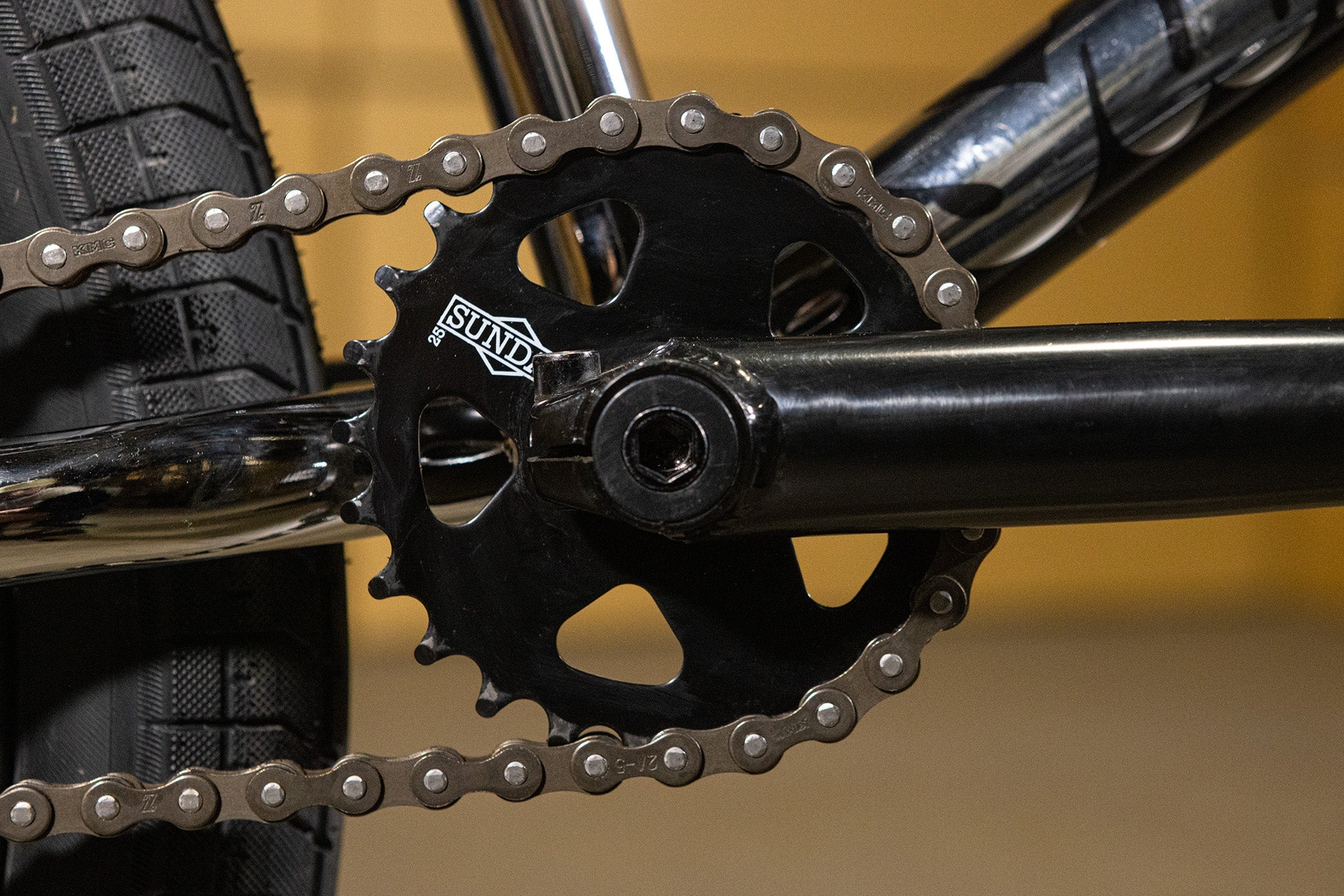

Sprocket: Sunday Sabertooth v2, 25T, steel
Cranks: 170mm, 3-piece, chromoly
BB Parts: Sealed, Mid, 19mm

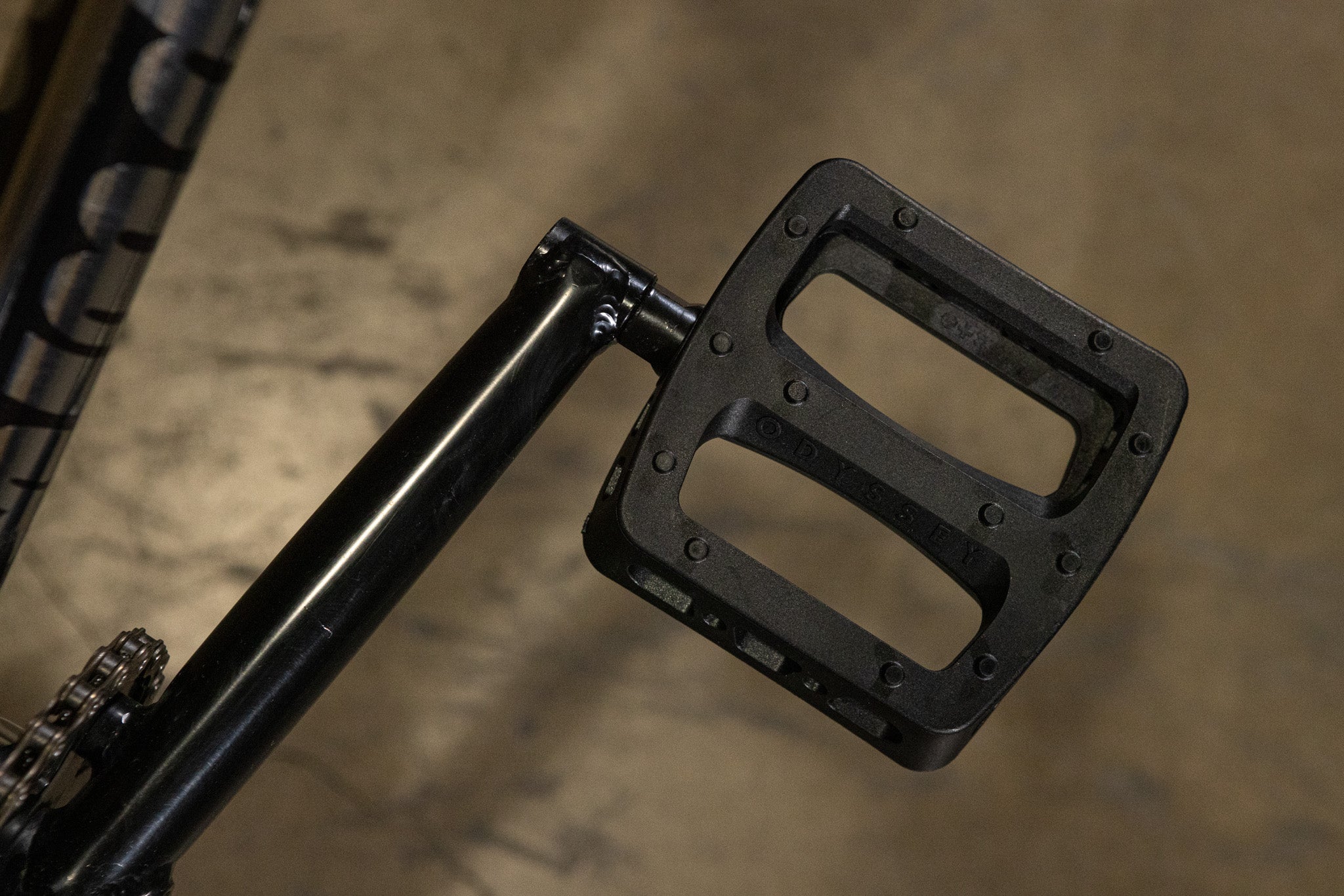

Pedals: Odyssey Twisted PC Pro

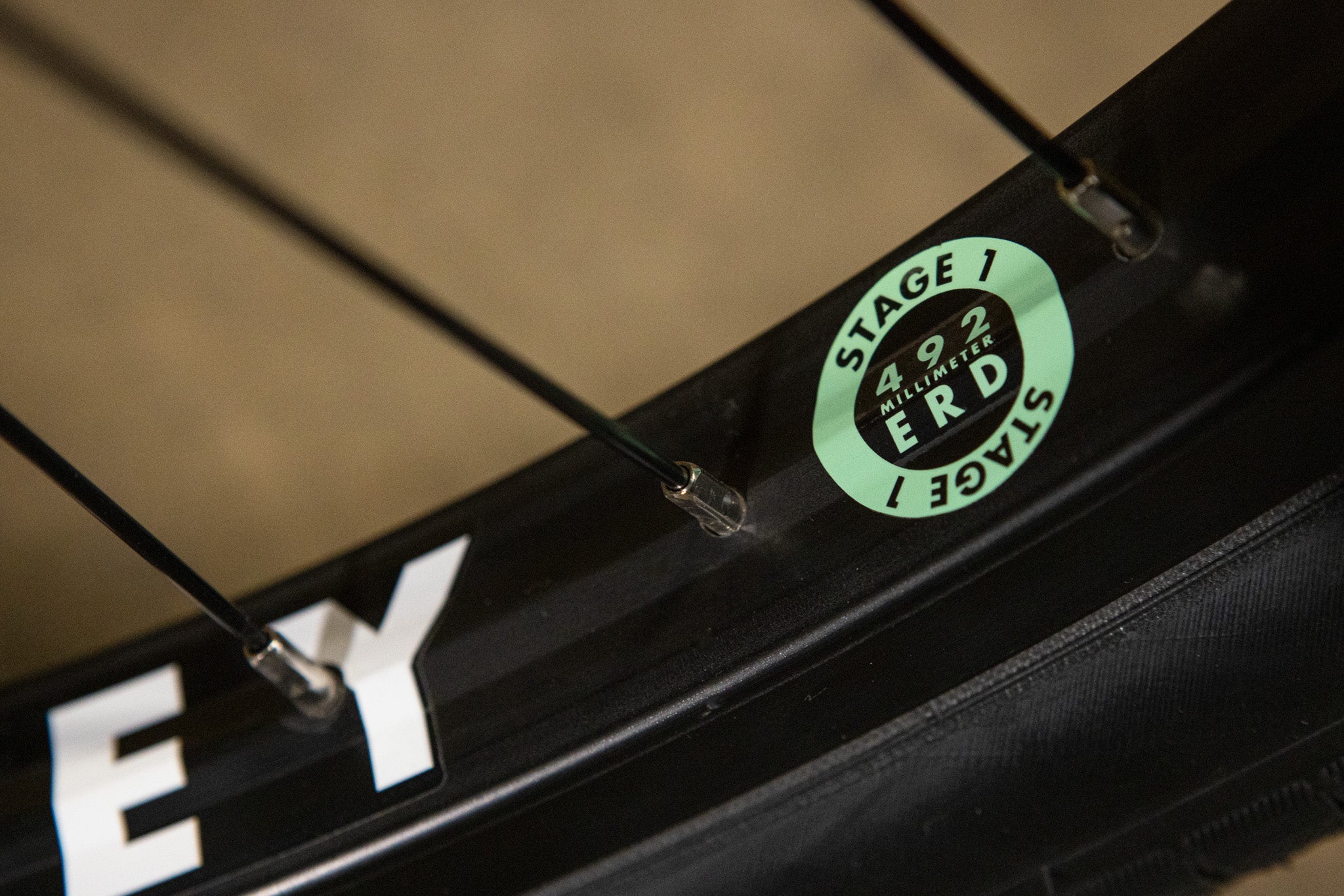

Rims: Odyssey Stage 1, 24", 36H

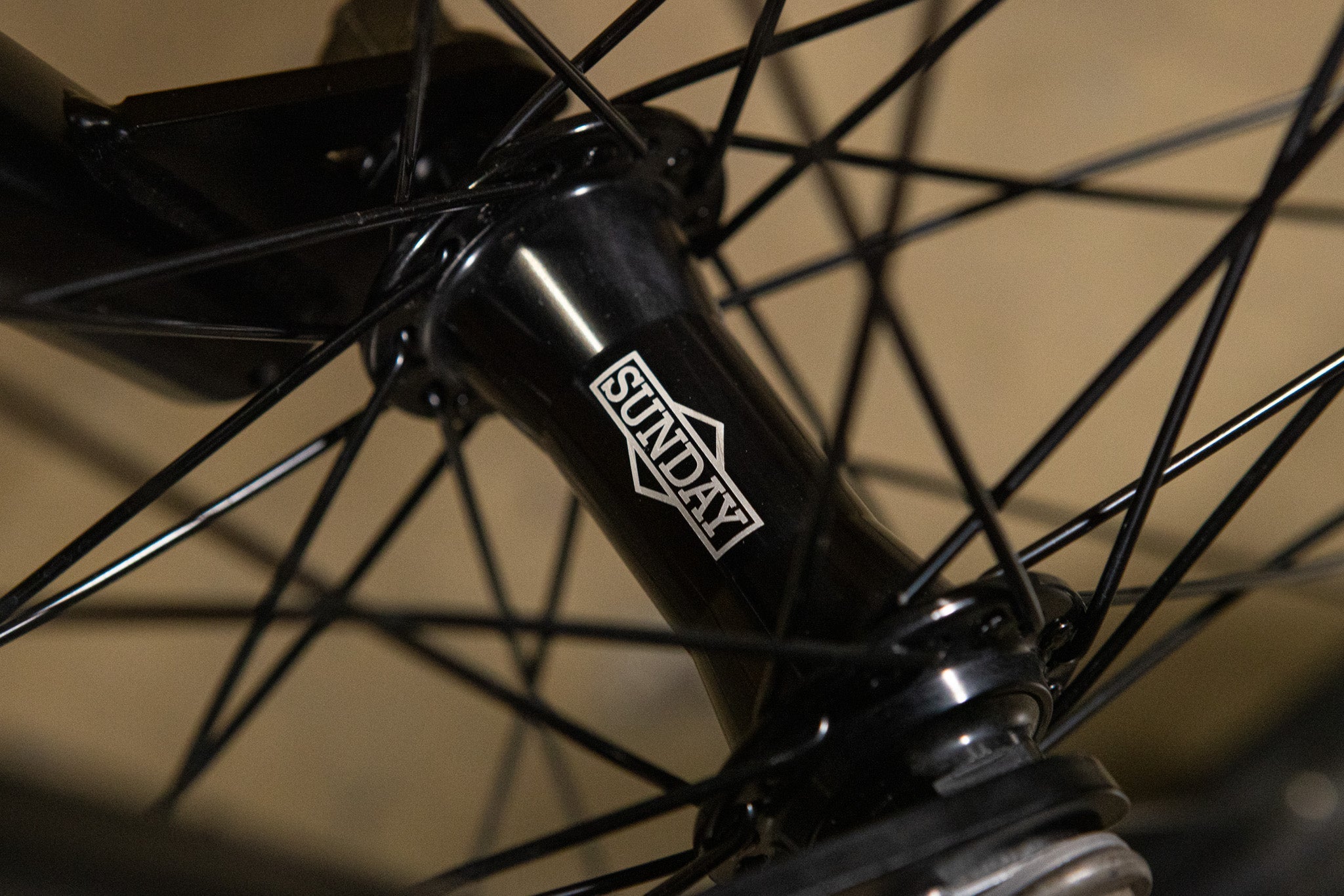

Front Hub: Sunday, 36H, low-flange, sealed , 3/8" axle

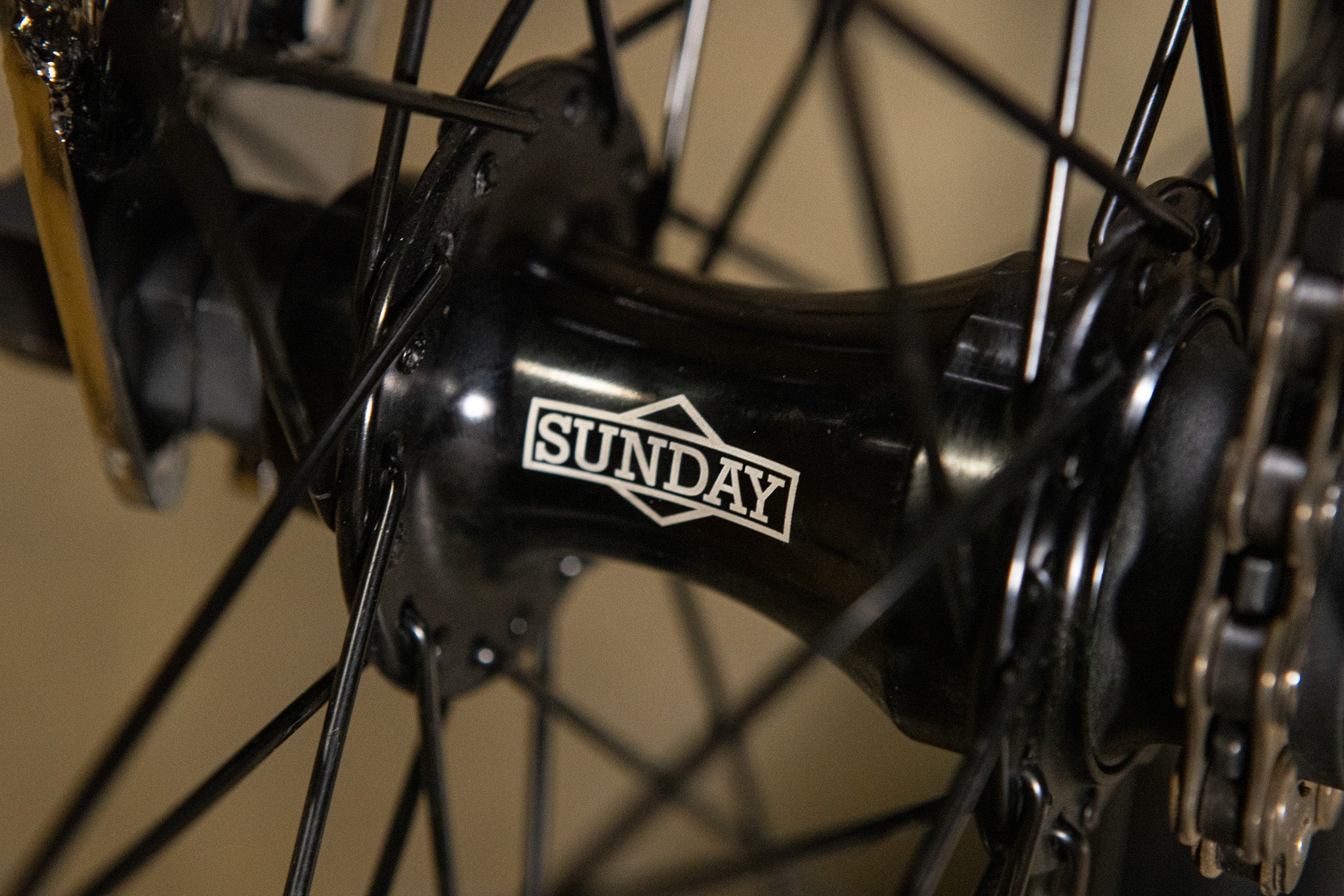

Rear Hub: Sunday 36H, sealed, 14mm axle w/ 10T Driver
Spokes: 14g steel, black
Tires: Odyssey Pursuit OEM, 24 x 2.2" (F & R)
Chain: KMC Z1 wide
Approx. Weight: 29.1lbs (with Brakes)
Frame Geometry
Top Tube Length: 22"
Head Tube Angle: 74.5°
Seat Tube Angle: 71°
Chainstay Length: 14.6-14.85”
Bottom Bracket Height: 13.75"
Standover: 9.25”
Handlebar Geometry
Rise: 7.75"
Width: 28"
Backsweep: 12°
Upsweep: 4°
---
*Specs subject to change without notice.
